Wildfire Monitoring and Prediction
|
Fire Imaging
|
|
|
Copper Fire, Los Angeles
County, California
7 June 2002
As viewed by the FireMapper
Thermal-Imaging Radiometer
Images were collected from the PSW Airborne Sciences
Aircraft and disseminated in part by satellite communications
in near-real time. FireMapper measures the radiance of emitted
thermal-infrared light, which readily penetrates smoke. False-color
images shown here depict the apparent surface temperature (in
Celsius) as estimated from radiance and a simple black-body model.
Warmer tones represent recent or active combustion; areas of gray
are cooling ash or warm bare ground. Low temperatures of unburned
forest and cool ground are shown in green. Images have been geographically
referenced. Vertical exaggeration in 3-d views is 1.5 to one unless
otherwise noted.
|
|
|
Image 1: Copper
Fire, as viewed from above at 11.9 micrometres wavelength
on 7 June 2002 at approximately 2:30 pm local time. The town
of Green Valley is visible as a network of roads near the
top-center of the image; San Francisquito Road is visible
at the upper left.
|
|
Yellow lines are roads overlay from map.
|
|
|
ftp
link for downloading TIFF file
(Teale Albers projection)
|
Image 2: Copper
Fire, same as above Image 1, topographic view from the North.
The town of Green Valley is visible as a network of roads
in the foreground of the image.
|
|
|
|
|
|
|

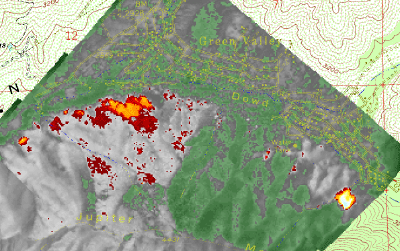

Image 3: Copper
Fire, near Green Valley, as in Image 1: 3:50 pm local time
on 7 June 2002.
|
|
|
|
|
|
Image 4: Copper
Fire, same as above Image 3, topographic view from the North.
The town of Green Valley is visible as a network of roads
in the foreground of the image.
|
|
|
|
|
Image 5: Copper
Fire, south of Bee Canyon on Del Sur ridge:
2:30 pm local time on 7 June 2002.
|
|
|
Image 6: Copper
Fire, same as above Image 5, topographic view from the North.
|
|
|
|
|
After downloading a TIFF as a zip file, decompress it with WinZip
(or your favorite ZIP utility) and the TIFF will be viewable in
WangIMG or other graphics viewer. Included are the auxiliary files
necessary for proper geo-referencing (if the viewer has that capability). |
|
|
|
|
FireMapper has
been developed through a Research Joint Venture with Space Instruments,
Inc., and support from the National Fire Plan, Forest Service International
Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency
for International Development.
