Fire Science

Wildfire Monitoring and Prediction
Fire Imaging

>500 C

300 C

200 C

75 C

45 C

<45C

Curve Fire, Angeles National Forest
7 September 2002


As viewed by the FireMapper™ Thermal-Imaging Radiometer

Images were collected from the PSW Airborne Sciences Aircraft and disseminated in part by satellite communications in near-real time. FireMapper measures the radiance of emitted thermal-infrared light, which readily penetrates smoke. False-color images shown here depict the apparent surface temperature (in Celsius) as estimated from radiance and a simple black-body model. Warmer tones represent recent or active combustion; areas of gray are cooling ash or warm bare ground (see chart at left). Low temperatures of unburned forest and cool ground are shown in green. Images have been geographically referenced. Vertical exaggeration in 3-d views is 1.5 to one unless otherwise noted.

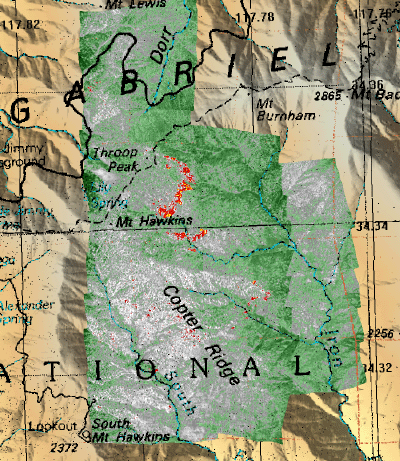

Location Map

Click on the image above to view a larger JPEG image


Image 1:
Ground surface temperatures as viewed from above at 11.5 to 12.3 micrometres wavelength on 7 September 2002, between 1:06 and 1:21 pm.


Click on the image above to view a larger JPEG image

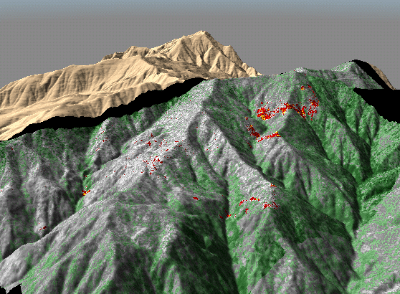

Image 2:
Topographic view from the southeast of Image 1, above.

No vertical exaggaration.


Click on the image above to view a larger JPEG image






Download the data from the passes at full resolution,
in geo-coded tif format zip files from our ftp site!
(Teale Albers projection)
Pass 3
Pass 5
Pass 7








After downloading a TIFF as a zip file, decompress it with WinZip (or your favorite ZIP utility) and the TIFF will be viewable in WangIMG or other graphics viewer. Included are the auxiliary files necessary for proper geo-referencing (if the viewer has that capability).


Links


Archives of past fires: 2008 2007 2006 2005 2004 2003 2002 2001


Forest mapping: 2008 2007 2006 2005 2004 2003 2002 2001


FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools- image analysis software: ftp downloads page

For Further Information: contact Dr. Philip J. Riggan



FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
Disclaimer: Trade names, commercial products, and enterprises are mentioned solely for information. No endorsement by the U.S. Department of Agriculture is implied.
