Fire Science |
|
|
Wildfire Monitoring and Prediction
|
| Fire
Imaging |
|
|
>500 C
300 C
200 C
55 C
20 C
<20 C
|
 |
Williams Fire, Angeles
National Forest
23 September 2002
As viewed by the FireMapper™
Thermal-Imaging Radiometer
Images were collected from the PSW Airborne
Sciences Aircraft and disseminated in part by satellite
communications in near-real time. FireMapper measures the
radiance of emitted thermal-infrared light, which readily
penetrates smoke. False-color images shown here depict the
apparent surface temperature (in Celsius) as estimated from
radiance and a simple black-body model. Warmer tones represent
recent or active combustion; areas of gray are cooling ash
or warm bare ground. Low temperatures of unburned forest
and cool ground are shown in green. Images have been geographically
referenced. Vertical exaggeration in 3-D views is 1.5 to
one unless otherwise noted.
|
| |
|

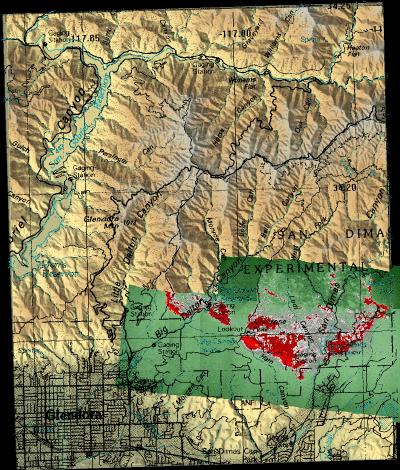

| Location Map |
Click on the image above to view a larger JPEG image |
| |
|
|
Image 1:
Ground surface temperatures as viewed from above at 11.5 to
12.3 micrometers wavelength on 23 September 2002, between
3:04 and 4:05 pm.
|
Click on the image above to view a larger JPEG image |
|
|
|
|
Image 2:
Ground surface temperatures as viewed from above at 11.5 to
12.3 micrometers wavelength on 23 September 2002, between
8:36 and 8:42 pm.
As this is a night image, there is little low temperature
variation in the landscape. Below 65 C is gray.
|
Click on the image above to view a larger JPEG image
|
|
|
|
|
| |
FireMapper™ has
been developed through a Research Joint Venture with Space Instruments,
Inc., and support from the National Fire Plan, Forest Service International
Programs, the U.S. Department of Agriculture, and the U.S. Agency
for International Development.
