Fire Spread mapping of the Old Fire,
San Bernardino NF
Page 4
25 October 2003
As viewed by the FireMapper
Thermal-Imaging Radiometer
Images were collected from the PSW Airborne
Sciences Aircraft and disseminated in part by satellite
communications in near-real time. FireMapper measures the
radiance of emitted thermal-infrared light, which readily
penetrates smoke. False-color images shown here depict
the apparent surface temperature (in Celsius) as estimated
from
radiance and a simple black-body model. Warmer tones represent
recent or active combustion; areas of gray are cooling
ash
or warm bare ground (see chart below). Low temperatures
of unburned forest and cool ground are shown in green.
Images have been geographically referenced. Vertical exaggeration
in 3-d views is 1.5 to one unless otherwise noted.
|
Go to Page 1
Go to Page 2
Go to Page 3
Go to Page 3a
|
Page
3a displays images of the Del Rosa neighborhood of San Bernardino
as hundreds of homes burn |

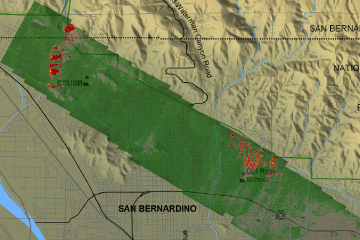

Fire Area Map
|
|
Click on the image above to view a larger JPEG image
(opens a new browser window)
|
|
Fire Imagery
|
The following color-coded images depict apparent ground surface temperatures
in Celsius.
The background image is a portion of a high-resolution
multi-band mosaic assembled from data collected on 9 September
2003 (pre-fire).
|
|
|

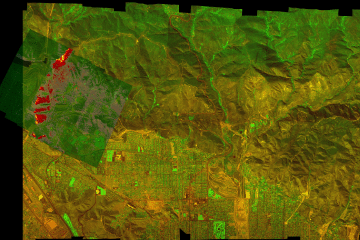

Image 1: Pass 42
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength
on 25 October 2003, at 4:58 pm PDT.
|
Click on the image above to view a larger JPEG image
(opens a new browser window)
|
Image 1: Pass 42
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength
on 25 October 2003, at 4:58 pm PDT.
|
Click on the image above to view a larger JPEG image
(opens a new browser window)
|

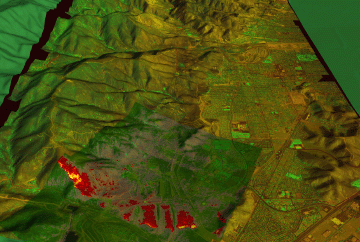

Image 1a: Pass 42
Topographic view from west.
No vertical exaggeration.
|
Click on the image above to view a larger JPEG image
(opens a new browser window)
|

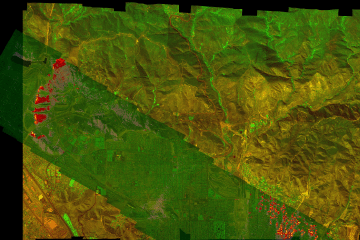

Image 2: Pass 44
Ground surface temperatures as viewed from above at 11.9 micrometers
wavelength on 25 October 2003, at 5:06 pm PDT.
|
Click on the image above to view a larger JPEG image
(opens a new browser window) |
Image 2: Pass 44
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength
on 25 October 2003, at 5:06 pm PDT.
|
Click on the image above to view a larger JPEG image
(opens a new browser window)
|

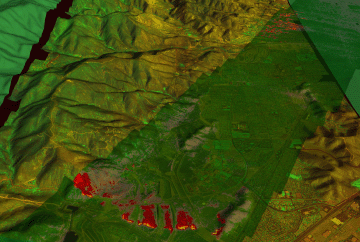

Image 2a: Pass 44
Topographic view from west.
No vertical exaggeration. |
Click on the image above to view a larger JPEG image
(opens a new browser window) |
