Pine Fire, San Diego County, CA
14:13 PDT 13 September 2007
As viewed by the FireMapper Thermal-Imaging Radiometer
|
Click on the image above to view a larger Zoomify image
or view the JPEG version
(opens a new browser window)
Current Image: Thermal mosaic
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength on 13 September 2007, between 14:13 and 14:23 PDT.
|
|
|

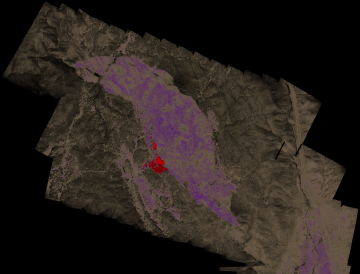

Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).
Purple is used to show cooling ash but could be associated with bare ground away from fire.
|
Click on the image above to view a larger JPEG image
(opens a new browser window) |
|
|

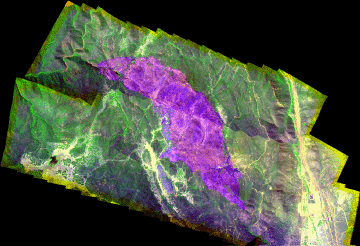

Image 2: 3-band Mosaic
Plan view of fire.
Download the geoTIFF format color image
33 MB ZIP file
|
Click on the image above to view a larger JPEG image
(opens a new browser window) |
|
|
Firelines
|
|
|
|
Weather conditions at time of data collection :
from NOAA ROMAN system. |
Past Weather Conditions for MLGC1
Observations prior to selected time: September 13, 2007 - 15:00 PDT
Weather Conditions at September 13, 2007 - 14:03 PDT
|
14:03 |
24 Hour Max |
24 Hour Min |
Temperature |
86.0° F |
86.0 at 14:03 |
52.0 at 5:03 |
Dew Point |
38.9° F |
43.8 at 7:03 |
27.2 at 18:03 |
Relative Humidity |
19% |
64 at 6:03 |
17 at 18:03 |
Wind Speed |
4 mph from SW |
4 at 11:03 |
0 at 19:03 |
Wind Gust |
12 mph |
15 at 15:03 |
0 at 23:03 |
Fuel Temperature |
97.0° F |
97.0 at 12:03 |
50.0 at 3:03 |
10 hr Fuel Moisture |
6 gm |
8 at 3:03 |
6 at 15:03 |
Battery voltage |
12.90 volt |
13.00 at 17:03 |
12.50 at 2:03 |
|
