Fire Science |
|
Wildfire Monitoring and Prediction
|
Fire
Imaging |
|
Black Mountain 2 Fire,
Missoula County, MT
23 August 2003
As viewed by the FireMapper Thermal-Imaging
Radiometer
Images were collected from the PSW Airborne
Sciences Aircraft and disseminated in part by satellite
communications in near-real time. FireMapper measures the
radiance of emitted thermal-infrared light, which readily
penetrates smoke. False-color images shown here depict
the apparent surface temperature (in Celsius) as estimated
from radiance and a simple black-body model. Warmer tones
represent recent or active combustion; areas of gray are
cooling ash or warm bare ground (see chart below). Low
temperatures of unburned forest and cool ground are shown
in green. Images have been geographically referenced. Vertical
exaggeration in 3-d views is 1.5 to one unless otherwise
noted.
|
|
|
|
Location Map
Area of Black Mountain fire (courtesy of
www.geomac.gov). Active
fires are labeled in white.
|
Click on the image above to view a larger JPEG image
|
|
|
Fire Imagery
|
The following color-coded images depict apparent ground
surface temperatures in Celsius. Roads, streams, and
the text in the background are from a 1:100,000 topographic
map.
|
|
|

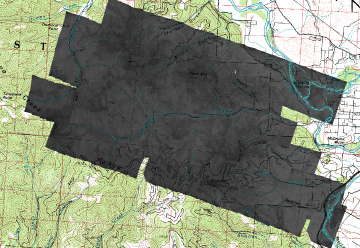

Image 1:
Ground surface temperatures as viewed from above at 11.9
micrometers wavelength on 23 August 2003, from 20:57 to
21:27 MDT.
|
Click on the image above to view a larger JPEG image |
|
|

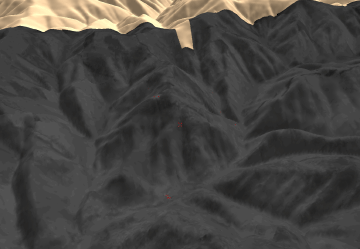

Image 2:
Topographic view as seen from the northeast of Image 1. Hotspots
are colored in shades of red.
|
Click on the image above to view a larger JPEG image |
|
|
|
|
Narrative
from the INCIDENT MANAGEMENT SITUATION REPORT
SATURDAY AUGUST 23, 2003 - 0800 MDT. (Courtesy of www.nifc.gov.)
|
|
|
|
|
|
|
FireMapper has
been developed through a Research Joint Venture with Space Instruments,
Inc., and support from the National Fire Plan, Forest Service International
Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency
for International Development.
