Fire Science: Wildfire Monitoring and Prediction
|
|
Fire Imaging: Zaca Fire |
|
|
|
Zaca Fire, Santa Barbara County, CA
14:48 PDT 29 August 2007
As viewed by the FireMapper Thermal-Imaging Radiometer
|
Click on the image above to view a larger Zoomify image
or view the JPEG version
(opens a new browser window)
NOTE: Only the southern half of the fire area was covered today.

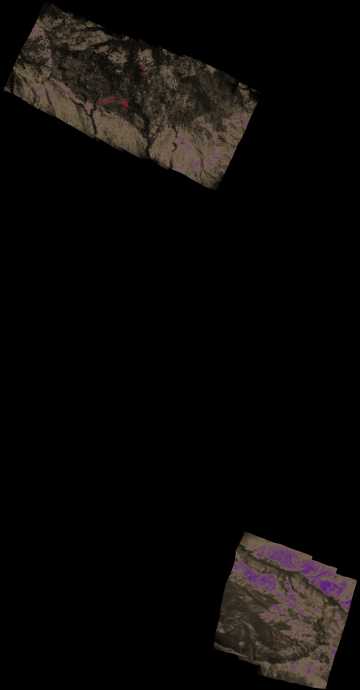

Current Image: Thermal mosaic
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength on 29 August 2007, between 14:48 and 15:51 PDT.
|
|
|
Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).
Purple is used to show cooling ash but could be associated with bare ground away from fire.
|
Click on the image above to view a larger JPEG image
(opens a new browser window) |
|
|
|
|
Hotspots
|
|
|
|
Weather conditions at time of data collection :
from NOAA ROMAN system. |
Past Weather Conditions for LPOC1
Observations prior to selected time: August 29, 2007 - 16:00 PDT
Weather Conditions at August 29, 2007 - 15:14 PDT
|
15:14 |
24 Hour Max |
24 Hour Min |
Temperature |
108.0° F |
109.0 at 14:14 |
68.0 at 0:14 |
Dew Point |
53.7° F |
54.3 at 16:14 |
48.1 at 5:14 |
Relative Humidity |
17% |
50 at 0:14 |
16 at 14:14 |
Wind Speed |
4 mph from ESE |
5 at 17:14 |
0 at 20:14 |
Wind Gust |
9 mph |
14 at 18:14 |
0 at 22:14 |
Solar Radiation |
243.0 W/m*m |
816.0 at 13:14 |
0.0 at 20:14 |
Fuel Temperature |
122.0° F |
124.0 at 14:14 |
66.0 at 1:14 |
10 hr Fuel Moisture |
5 gm |
8 at 7:14 |
5 at 15:14 |
Battery voltage |
12.80 volt |
13.00 at 10:14 |
12.50 at 0:14 |
|
|
|
FireMapper has
been developed through a Research Joint Venture with Space Instruments,
Inc., and support from the National Fire Plan, Forest Service International
Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency
for International Development.
|
