	Fire Science

	Thermal mapping

Mammoth Geyser Basin in Yellowstone NP on the night of October 11, 2006 As viewed by the FireMapper™ system in Thermal-Infrared light
Click on the image above to view a larger Zoomify (JPEG) image with 2 meter resolution (opens a new browser window) Images were collected from the PSW Airborne Sciences Aircraft flying over the area of the Mammoth Geyser Basin at 19:30 MDT.

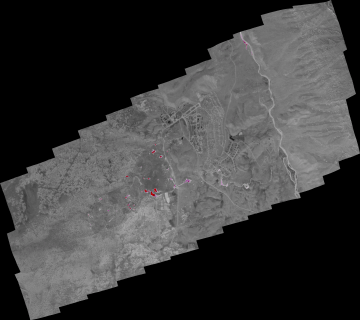

Image 1: Image mosaic from Mammoth Geyser Basin. The mean surface temperature was just above freezing, 30 C is the break between the purple and the dark red and 75 C is the top of the red scale. Download this image as a 2 meter-resolution TIFF.	Click on the image above to view the full-resolution image (opens a new browser window)

Weather conditions at time of data collection : from NOAA ROMAN system.	THRW4 Observations prior to selected time: October 11, 2006 - 18:00 MDT Weather Conditions at October 11, 2006 - 17:10 MDT 17:10 24 Hour Max 24 Hour Min Temperature 43.0° F 45.0 at 13:10 32.0 at 23:10 Dew Point 26.1° F 27.2 at 6:10 22.7 at 12:10 Relative Humidity 51% 79 at 6:10 45 at 13:10 Wind Speed 3 mph from WSW 12 at 15:10 0 at 23:10 Wind Gust 23 mph 26 at 14:10 8 at 21:10 Solar Radiation 125.0 W/mm 784.0 at 11:10 0.0 at 19:10 Fuel Temperature 44.0° F 52.0 at 13:10 31.0 at 22:10 10 hr Fuel Moisture 15 gm 16 at 18:10 15 at 13:10 Battery voltage 13.50 volt 13.60 at 11:10 12.60 at 6:10 Precipitation accumulated since midnight: 0.00", in 24 hours: 0.00" BURRO HILL* Observation Time: 10/11/06 @ 18:40 MDT Elevation: 7166 ft. For more info: BURRO HILL (ERAW4) OK Temperature: 44 °F Dew Point: 25 °F Humidity: 46 % Wind: NW at 6 MPH Peak Gust: 20 MPH 24 Hour Max/Min Events Max Temperature: 54 °F Min Temperature: 33 °F Max RH: 88 % Min RH: 38 % Max Dew Point: 32 °F Min Dew Point: 25 °F Max Gust: 22 MPH

Return to Home page

FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools image analysis software ftp downloads page

For Further Information: contact Dr. Philip J. Riggan

FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
